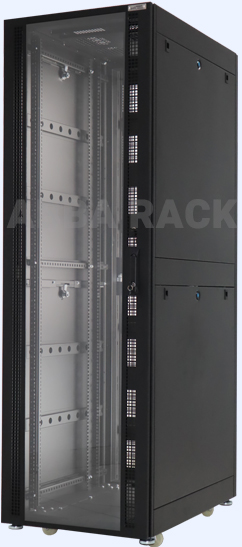

Closed Rack with Glass Door
Rack Server Jakarta


Feature :

   ♦ Standard 19" mounting holes with adjustable dimension
   ♦ Lift off side panel with slam latches for easy removal
   ♦ 180 degrees tempered glass swing door for wider
      opening and easy access
   ♦ High quality powder coated
   ♦ Various optional accessories
   ♦ Easy to assemble
   ♦ Top and bottom with cable entry
   ♦ Adjustable feet
   ♦ More space available for cabling installation (24")

Specification 19" :

Part Number Size Width Height Depth Weight
C20-10900-GG/GB 20U 600 1080 900 95
C20-11066-GG/GB 20U 600 1080 1066 105
C20-11150-GG/GB 20U 600 1080 1150 110
C30-10900-GG/GB 30U 600 1530 900 120
C30-11066-GG/GB 30U 600 1530 1066 135
C30-11150-GG/GB 30U 600 1530 1150 140
C42-10900-GG/GB 42U 600 2065 900 150
C42-11066-GG/GB 42U 600 2065 1066 165
C42-11150-GG/GB 42U 600 2065 1150 175
C45-10900-GG/GB 45U 600 2195 900 155
C45-11066-GG/GB 45U 600 2195 1066 170
C45-11150-GG/GB 45U 600 2195 1150 180

Specification 24" :

Part Number Size Width Height Depth Weight
C42-20900-GG/GB 42U 800 2065 900 190
C42-21066-GG/GB 42U 800 2065 1066 210
C42-21150-GG/GB 42U 800 2065 1150 220
C45-20900-GG/GB 45U 800 2195 900 200
C45-21066-GG/GB 45U 800 2195 1066 220
C45-21150-GG/GB 45U 800 2195 1150 230

*1U = 4.45cm
