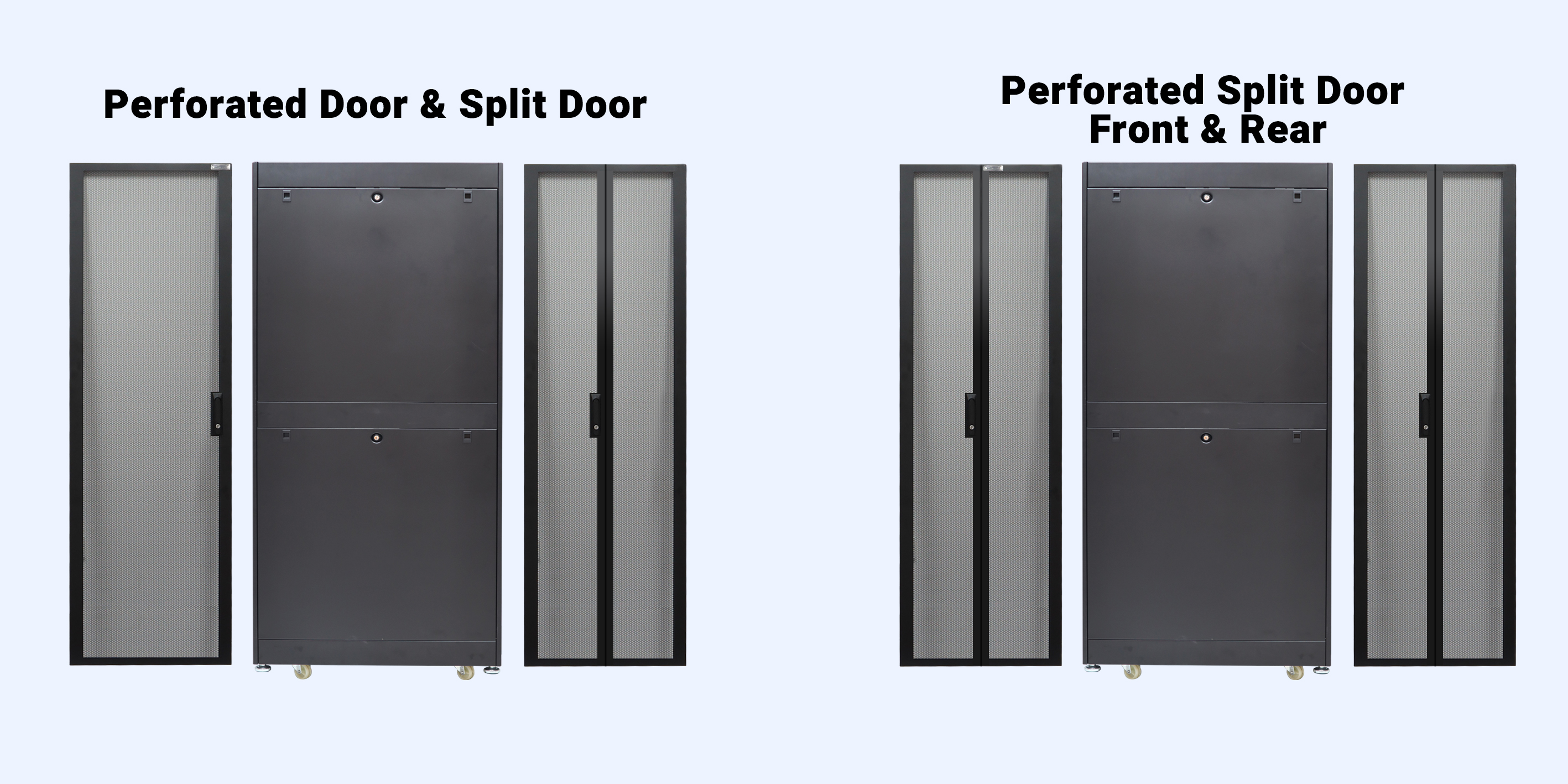

Closed Rack with Split Door
Rack Server Jakarta

Rack Server Jakarta



Feature :

     ♦ Cost effective cabinet solution adaptable to server,
        network, and mixed use applications
     ♦ Specially designed for high end blade server and
        equipment technologies
     ♦ Size to match industry standards
     ♦ Fully vented top cover with 3 cable access channel
     ♦ Front perforated door with 3 points handle lock
     ♦ Top and bottom with cable entry
     ♦ High quality powder coated
     ♦ 80% perforated enclosure and customized cladding to
        ensure ideal air flow direction and pattern


Specification 19" :

Part Number Size Width Height Depth Weight
C42-10900-M/T 42U 600 2065 900 150
C42-11066-M/T 42U 600 2065 1066 165
C42-11150-M/T 42U 600 2065 1150 175
C45-10900-M/T 45U 600 2065 900 155
C45-11066-M/T 45U 600 2065 1066 170
C45-11150-M/T 45U 600 2065 1150 180

Specification 24" :

Part Number Size Width Height Depth Weight
C42-20900-M/T 42U 800 2065 900 190
C42-21066-M/T 42U 800 2065 1066 210
C42-21150-M/T 42U 800 2065 1150 220
C45-20900-M/T 45U 800 2065 900 200
C45-21066-M/T 45U 800 2065 1066 220
C45-21150-M/T 45U 800 2065 1150 230

*1U = 4.45cm
