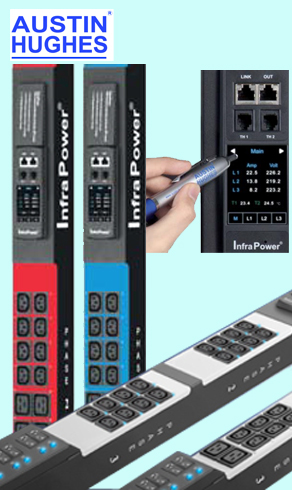

Austin Hughes Infra Power 3-Phase Intelligent PDU - WSi series

Monitored kWh PDU with Outlet Measurement + Outlet Switched ON/OFF, Ampere, Voltage and Temperature & Humidity, Smoke and Door Sensors

WSi PDU is the most feature rich model in InfraPower Intelligent PDU family. It has features : Monitoring of current, voltage, power, kWh energy consumption; Environmental temp. & humidity monitoring; Outlet level measurement; plus individual outlet remote switch ON/OFF.

InfraPower Intelligent kWh PDU (W series PDU) provide the monitoring and reporting on the energy consumption, so that data center facilities manager can make an effective planning on the power capacity.

InfraPower W Series PDUs support daisy chain connections allowing up to 16/32 PDUs to be cascaded via Cat.5e / Cat.6 cables. All the PDUs are remotely accessed via only one network IP address.

InfraPower offers 3 kinds of remote management solutions : Free Management Software IPM-04, Web-based GUI or 3rd Party DCIM via SNMP V2/V3 or REST API.

Sophisticated W Meter with 2.8” LCD touchscreen
InfraPower Intelligent PDUs are supplied with a sophisticated meter.
The 2.8″ color LCD with touchscreen provides a sharp and highly visible display of kWh, kW, Power Factor, Volt, Amp, Temperature and Humidity.
It has provide daisy chain connection ports to connect up to 32 smart PDUs and 2 optional external sensors.
The meter is hot swappable and field replaceable without needing to power down the PDU or attached mission critical equipment.

Highly Cost Effective IP Remote Access by IP Dongle
The new stylish Dual Lan PDU IP Dongle (Vertical or Horizontal) provides standard 10/100 & Gigabit Ethernet ports.
The PDUs in daisy chain can be accessed via two separate networks and hence the PDU connection can be secured by dual LAN network.
Apart from wired connection, WIFI connection is also available by optional USB port.
Up to 32 PDU can be cascaded, supports DCIM integration via SNMP V2 / V3 or REST API

Centralized Management for Ultra Density PDUs
InfraPower Intelligent W Series PDUs - WSi, Wi, WS, and W are designed to support daisy chain connection up to 32 PDUs per group.
Only one single true IP address is required to remote access all the PDUs in the daisy chain connection group.

Software Functionality
InfraPower offers 3 kinds of remote management solutions : Free Management Software IPM-04, Web-based GUI or 3rd Party DCIM via SNMP V2/V3 or REST API.
Remote monitoring on aggregate Current load (Amp), Voltage (Volt), Power (kW), Energy consumption (kWh), Temperature and Humidity.
Remote switching on/off per outlet for Switched PDUs; Reporting and Alarm threshold setting and etc.

Colored PDU Chassis and Power Cords for Visualizing Power Sources
Colored PDU chassis allow easy identification of power paths and simplifies management of power sources.
Standard color : Black
Optional color : Red, Blue, Green, Orange, Purple, Yellow, White
InfraPower PDU provides the simplest way to solve the cable management problems by introducing optional colored PDU casings and power cables.
Users can simply distinguish the PDU from which power source according to the color of the PDU casing or power cable.

Multiple Outlets Configuration
InfraPower PDU has Flexibility on variety of power connection to different devices.
Several outlet types configuration in a single PDU can be customized, such as C13+C19, Schuko+C13+C19, etc.
PDUs can be fitted with input plugs or either EN60309 16Amp/32Amp, IEC C20, Schuko, BS1363 or Open-end.

Wide Range / Customized PDU Configuration
InfraPower PDU Series offer a wide range of outlet configuration. PDUs range starting from 2 outlets to 48 outlets configuration are available.

Mounting Capabilities
Vertical and Horizontal rack mount form factors are available to suit the physical rack mount environmental in cabinets.
For Vertical PDU, universal mounting bracket is bundled for mounting the PDU.

Fused IEC Outlet
Prevent overload of the active equipment,
Avoid short circuiting of the entire PDU,
10A Rated C13 outlet with 5A glass fuse,
16A Rated C19 outlet with 10A glass fuse.

Lockable IEC Colored Power Cords
Patented design, Proprietary for InfraPower PDU, Applicable to standard IEC outlet in the market, Quality & cost effective, Easy to lock & secure,
6-colors : Black / Grey / Red / Blue / Orange / Green,
C13-C14 (0.75mm²) : 0.5M / 1M / 2M,
C19-C20 (1.5mm²) : 1M / 2M.

Resettable Fuse or Magnetic Circuit Breaker
Resettable Fuse: Protected load segments for increased reliability, Overload reset button.
Magnetic Circuit Breaker: Hydraulic magnetic circuit breaker, Overload switch, Designed to prevent accidental on / off operation.
