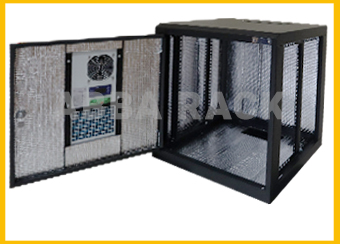

Wallmount Rack with Cooling
smart rack ac, distributor rack server

       

Features :

   ♦ 19” wallmount rack built in with the cooling for self
      containment for security purposes
   ♦ Saves energy and reduces your operating costs
   ♦ Saves valuable floor space in your IT environment
   ♦ Keeping your rack equipment cool and in reliable
   ♦ Designed for easy and convenient operation
   ♦ Air conditioner door mounted, all in one unit
   ♦ Cooling capacity 300W
   ♦ Optimize cooling system efficiency
   ♦ Available on standard 10U, 12U and 15U or customized

Air Conditioner Specification :

Name Air Conditioner
Product Dimension (H.400 x W.240 x D.150) mm
Installation Wallmounted
Working temperature -15 to +55 oC
Noise 65 dB(A)
Refrigerant R134a
Cooling capacity 300W @L35/L35
Inner air flow 110 M3/h
Power Consumption 125W @L35/L35
Voltage 48 VDC (power supply included)
Coating RAL 7035
Material SGCC


Wallmount Rack with Cooling Specification :

Part Number Size Dimensions
W10-500-AC-SG/SB 10U (W.550xH.527xD.500) mm
W12-500-AC-SG/SB 12U (W.550xH.625xD.500) mm
W15-500-AC-SG/SB 15U (W.550xH.765xD.500) mm

*1U = 4.45cm
