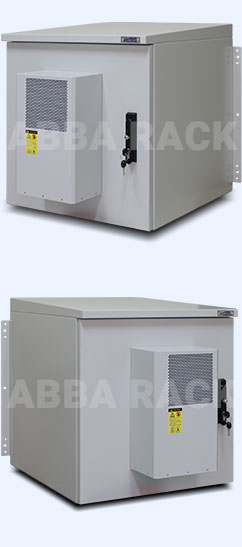

Wallmount Outdoor with Cooling
|
Features :
♦ 19 inchi server rack with cooling is ideal for self containment
for security purposes
♦ Outdoor Cabinet Category IP55, IP65, IP66, etc
♦ Air Conditioner Door Mounted, all in one unit
♦ Cooling Capacity : 300w, 800w
♦ Flexible installation, Pole or Wall mounted
♦ Optional with base for standing installation
♦ High quality powder coated, contstructin and design
♦ Material options : SPCC Steel, Aluminium and Stainless Steel
♦ Color : RAL7035 & RAL9005
♦ Available customized on requirements

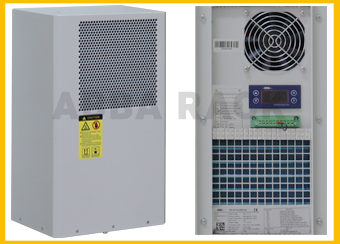

Air Conditioner 300Watt Specification :
| Name |
Air Conditioner |
| Rate Voltage |
48V |
| Installation |
Door - Mounted |
| Cooling capacity |
300W@35oC/35oC |
| Rated power Consumption |
125W@35oC/35oC |
| Rated current |
2.6A@35oC/35oC |
| EER |
2.4 |
| Inner circulation air flow Rate |
110m3/h |
| Display |
LED |
| Heater |
N/A |
| Operating temperature range |
-15 to +55 oC |
| Max. noise level |
65 dB(A) |
| IP protection level |
IP55 |
| Outer Dimensions |
(H.400xW.240xD.150) mm |
| Refrigerant |
R134a |
| Certification |
CE |
| Coating |
Powder Coating RAL7035 |
| Material |
SGCC |
Specifications :
| Part Number |
Size |
Width |
Height |
Depth |
| ABBA-W12U6060-AC-IP55 |
12U |
600 |
650 |
600 |
| ABBA-W15U6060-AC-IP55 |
15U |
600 |
780 |
600 |
|
|
*1U = 4.45cm |
 |
 |
 |
 |
.
