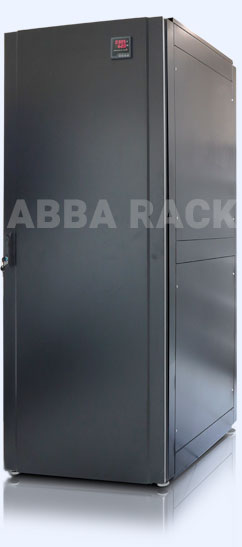

Air Conditioned Server Rack
|
Features :
♦ 19 inchi server rack with cooling is ideal for self containment
for security purposes
♦ Saves energy and reduces your operating costs
♦ Saves valuable floor space in your IT environment
♦ Keeping your rack equipment cool and in reliable
♦ Designed for easy and convenient operation
♦ Air conditioner rackmounted, all in one unit
♦ Cooling capacity 3.5kW
♦ Isolates cold & hot area to optimize cooling system efficiency
♦ Available rackmount space 32U & 35U
Air Conditioner Specification :
| Name |
Air Conditioner |
| Product Dimension |
(H.356xW.440xD.940) mm |
| Installation |
Bottom - Rackmounted |
| Working temperature |
-15 to +55 oC |
| Noise |
65 dB(A) |
| Refrigerant |
R410a |
| Cooling capacity |
3500W @L35/L35 |
| Supply air flow |
800 M3/h |
| Power Consumption |
1000W @L35/L35 |
| Voltage |
AC230V±10% VAC |
| Frequency |
50Hz/60Hz |
| Controller |
Microprocessor |
| Fans |
EBM fans |
| Compressor |
AC Compressor (Inverter) |
| Coating |
Powder Coating RAL 9002 |
| Material |
SGCC |
Specification 24" :
| Part Number |
Size |
Dimensions |
| C42-11100-SC1-G/B |
42U |
(H.2002 x W.600 x D.1100) mm |
| C42-21100-SC1-G/B |
42U |
(H.2002 x W.800 x D.1100) mm |
| C45-11100-SC1-G/B |
45U |
(H.2140 x W.600 x D.1100) mm |
| C45-21100-SC1-G/B |
45U |
(H.2140 x W.800 x D.1100) mm |
*1U = 4.45cm
|
 |
 |
