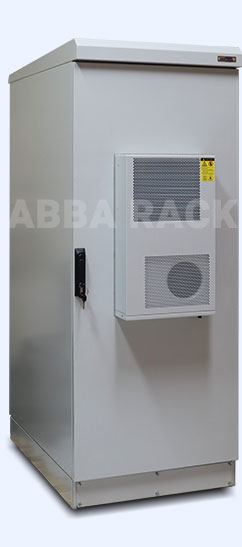

Standing Outdoor with Cooling
|
|
|
Features :
♦ 19 inchi server rack with cooling is ideal for self containment
for security purposes
♦ Outdoor Cabinet Category IP55, IP56, IP65, etc
♦ Air Conditioner Door Mounted, all in one unit
♦ Cooling Capacity : 800W, 1000w
♦ High quality powder coated, contstructin and design
♦ Material options : SPCC Steel, Aluminium and Stainless Steel
♦ Color : RAL7035
♦ Fixed mounting rails for support of patch panel, terminations
block and other equipments
♦ Various optionel accessories according to equpiment
(cable management, PDU, fans, UTP Panel, FO Panel, etc)
♦ Available customized on requirements

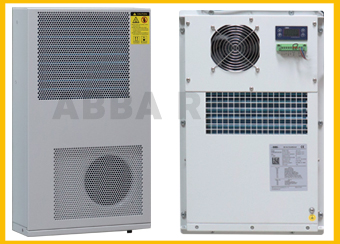

Air Conditioner Specification :
| Name |
Air Conditioner |
| Rate Voltage |
48V |
| Installation |
Door - Mounted |
| Cooling capacity |
800W@35oC/35oC |
| Rated power Consumption |
280W@35oC/35oC |
| Rated current |
5.8A@35oC/35oC |
| EER |
2.9 |
| Inner circulation air flow Rate |
150m3/h |
| Display |
LED |
| Heater |
N/A |
| Operating temperature range |
-15 to +55 oC |
| Max. noise level |
65 dB(A) |
| IP protection level |
IP55 |
| Outer Dimensions |
(H.546xW.315xD.175) mm |
| Refrigerant |
R134a |
| Certification |
CE |
Coating |
Powder Coating RAL |
| Material |
SGCC |
Specifications :
| Part Number |
Size |
Width |
Height |
Depth |
| ABBA-C20U9060-AC-IP65-RAL7035 |
20U |
600 |
1150 |
900 |
| ABBA-C30U9060-AC-IP65-RAL7035 |
30U |
600 |
1600 |
900 |
| ABBA-C42U9060-AC-IP65-RAL7035 |
42U |
600 |
2150 |
900 |
|
|
*1U = 4.45cm |
 |
 |
 |
 |
 |
 |
