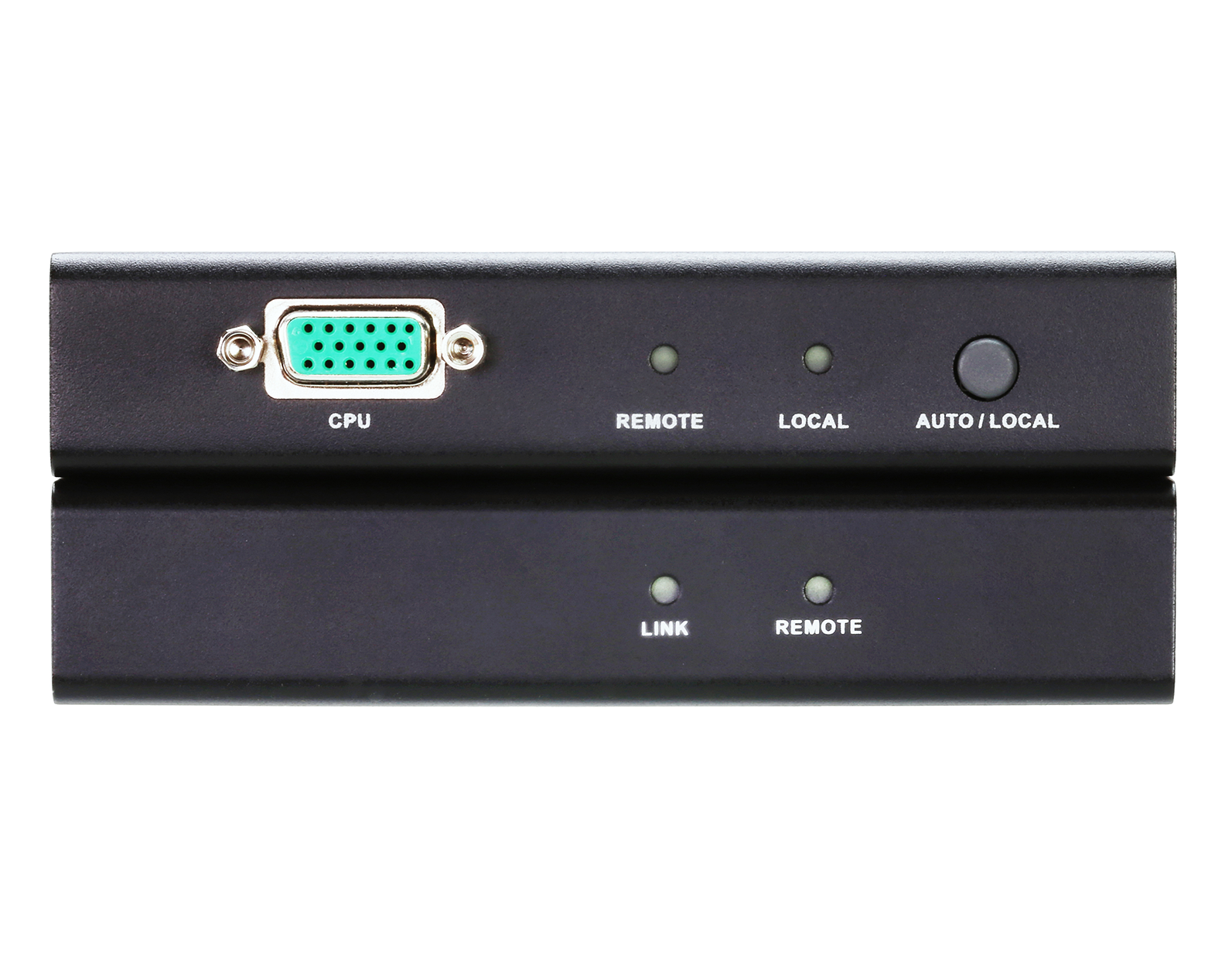

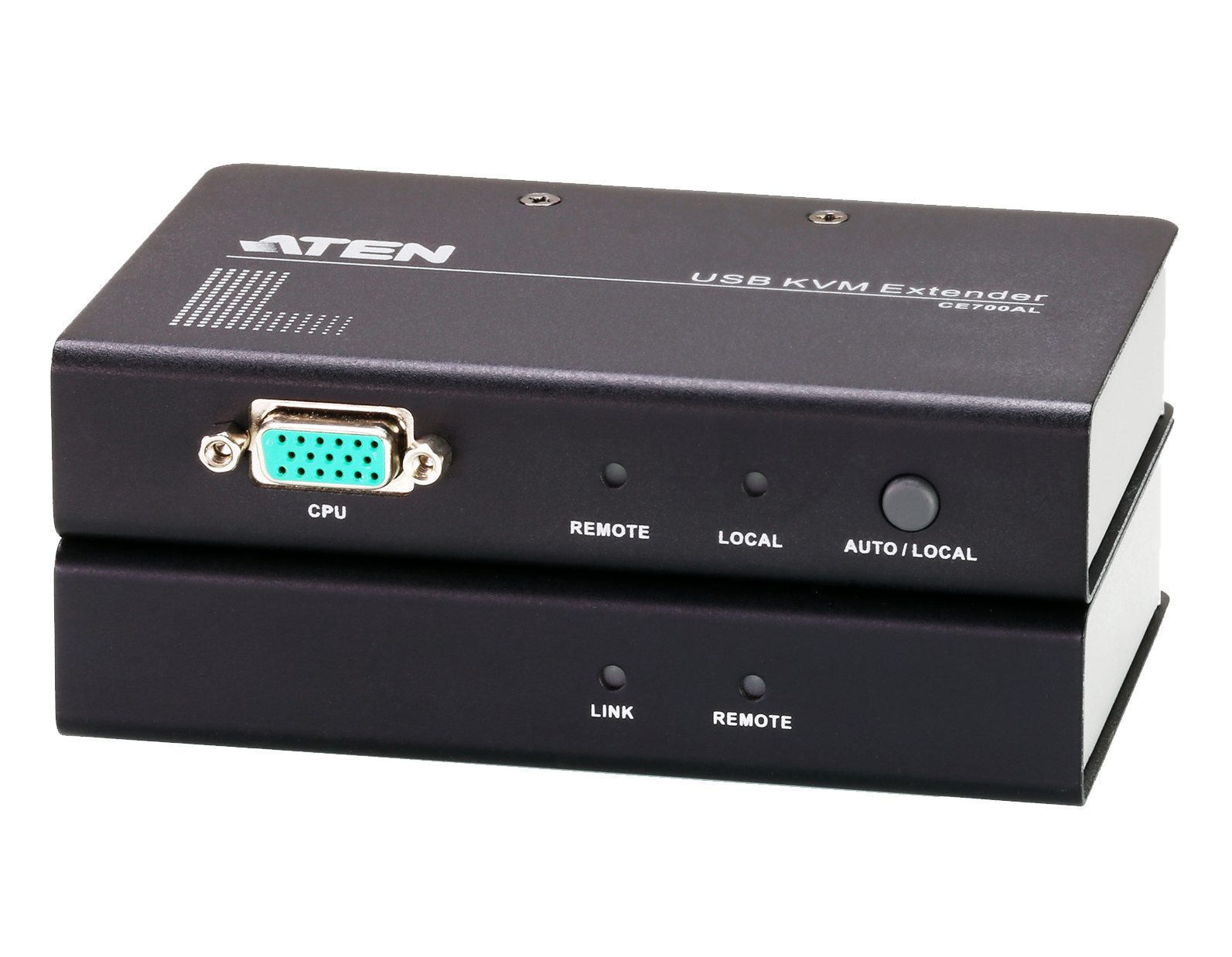

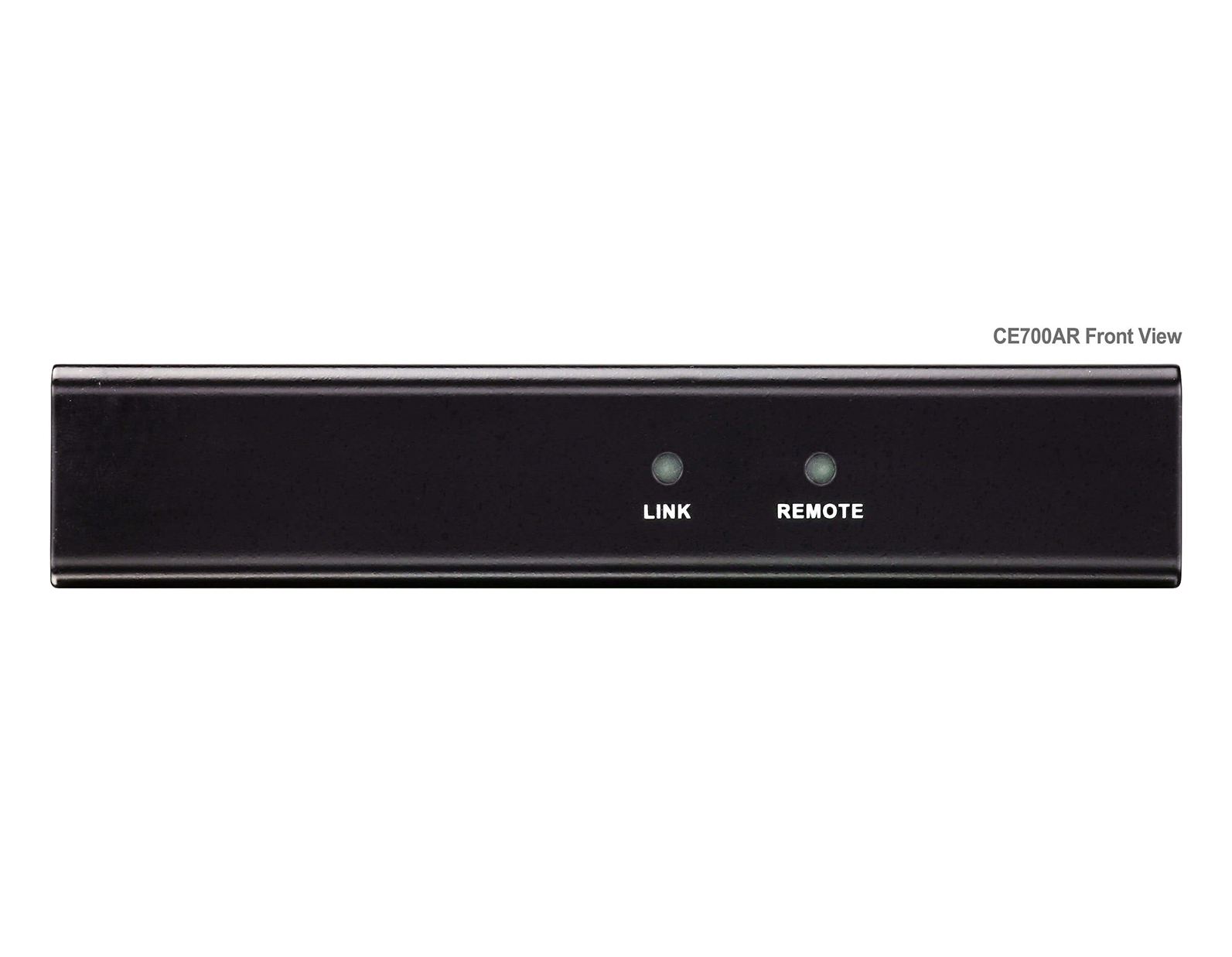

CE700A

The CE700A is a USB KVM Extender with superior video quality and built-in ESD and surge protection that allows access to a computer system up to 150 meters away from a remote USB console (USB keyboard, monitor, and USB mouse).

The CE700A improves on previous designs by: 1) incorporating 8KV/15KV ESD protection and 2KV surge protection; 2) providing superior video quality - up to 1920 x 1200 resolution; 3) using inexpensive Cat 5e cable, instead of bulkier, more expensive, standard cables, for a much neater, more convenient, more reliable data transfer connection; 4) it is able to sense the distance to the system and automatically adjusts the gain accordingly; and 5) it features a custom ASIC to ensure the utmost in reliability and compatibility.

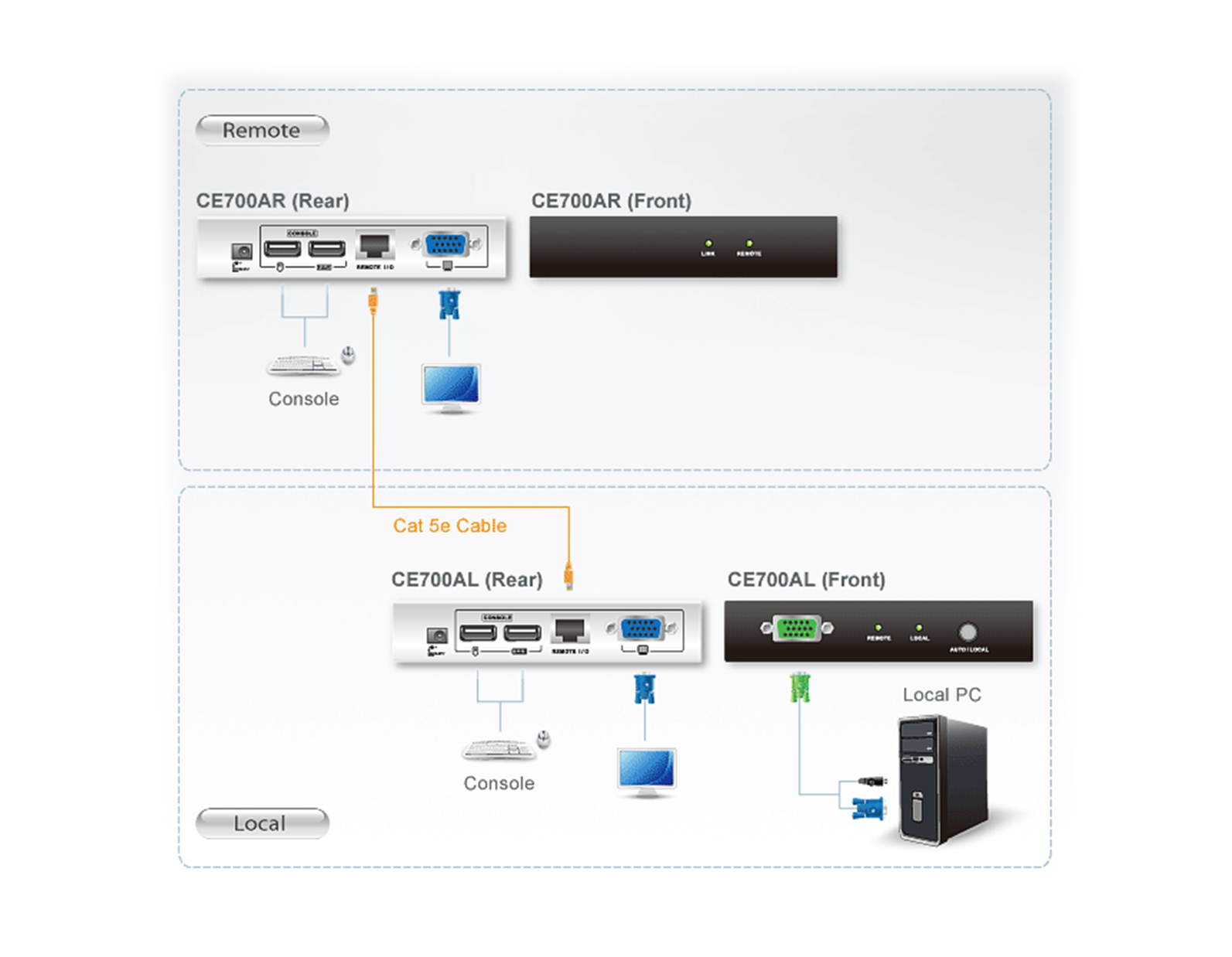

  ♦ Cat 5e cable connects the Local and Remote Units - up to 150m apart
  ♦ Dual console operation - control your system from both the local and remote USB keyboard,
     monitor, and mouse consoles
  ♦ Built-in ASIC for greater reliability and compatibility
  ♦ Auto Signal Compensation (ASC)

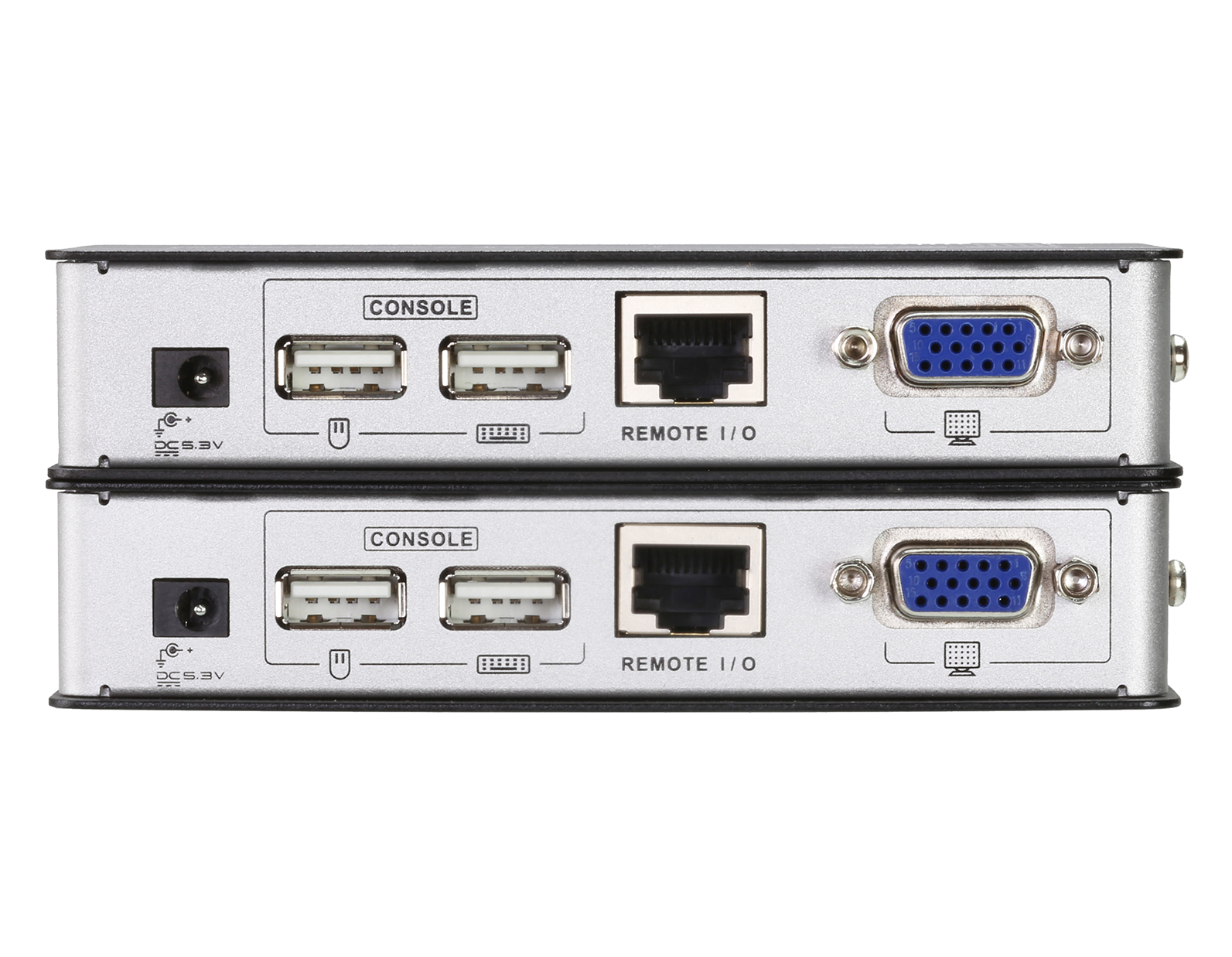

  ♦ USB Keyboard and USB Mouse Ports
  ♦ USB overcurrent detection and prevention
  ♦ Pushbutton operating mode selection (Local Unit only) - select between Local and Auto
     operating modes.
  ♦ Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV) and 2KV
     surge protection
  ♦ Automatic gain control - adjusts signal strength to compensate for distance
  ♦ High resolution video - up to 1920 x 1200@60Hz (30m ); 1600 x 1200@60Hz (100m);
     1280 x 1024@60Hz (150m)
  ♦ Supports Wide Screen formats *
  ♦ Supports VGA, SVGA, SXGA, UXGA, WUXGA and multisyncmonitors; local monitor supports
     DDC; DDC2; DDC2B
  ♦ Rack mountableEasy to install - no software required - connecting cables to the devices
     is all it takes
  ♦ Multiplatform support - Windows, Linux
