CL1000N

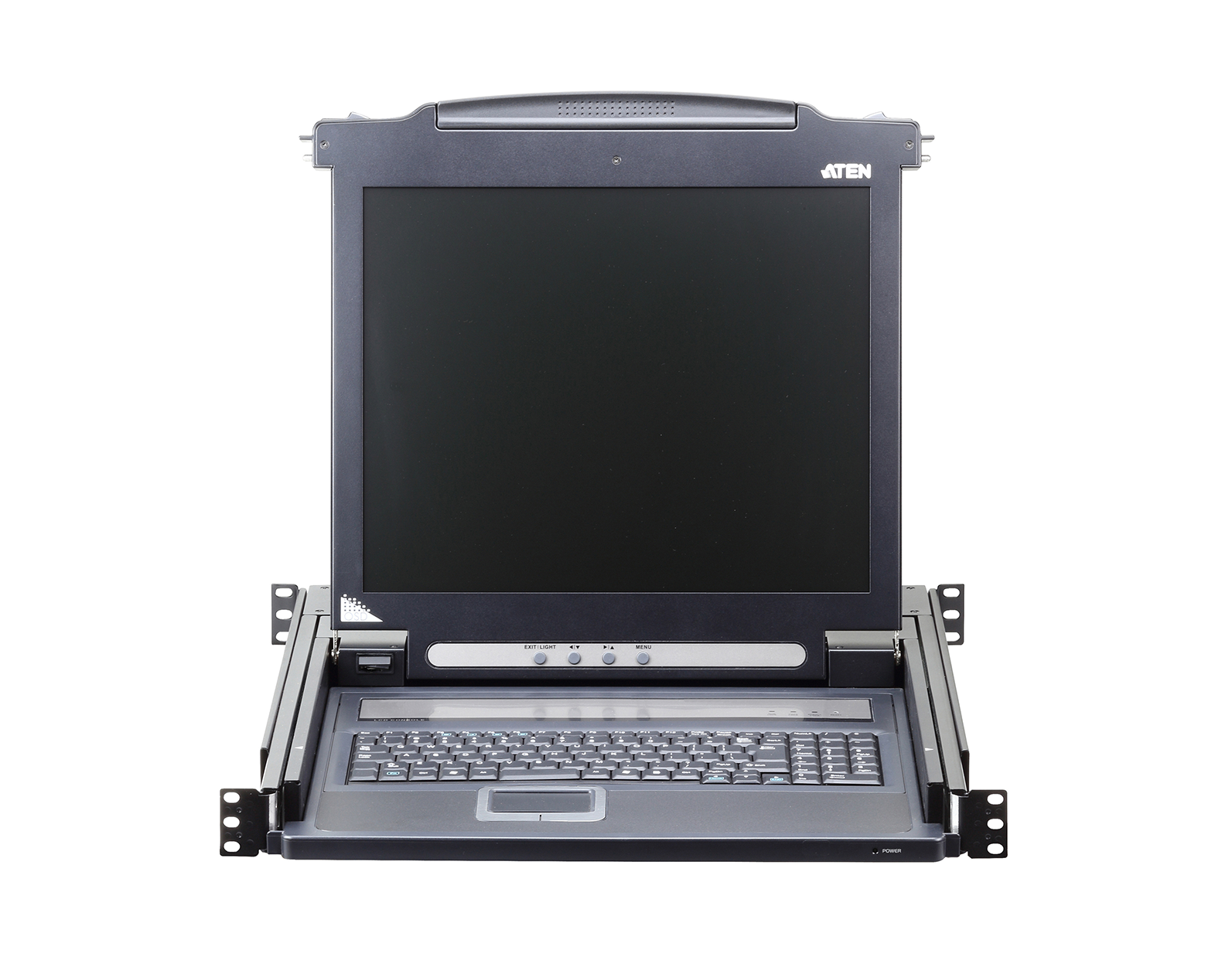

The CL1000 is a LCD KVM console that serves as the front-end for standard KVM switches. The CL1000 features an integrated 17" or 19” LED-backlit LCD panel, full keyboard, and touchpad in a 1U, rack-mountable, Slideaway™ housing.

Users who already have a switch can take advantage of the space saving and efficiency benefits of the CL1000 LCD KVM console without the unnecessary expense of having to purchase a KVM switch. This model provides convenient 'at the rack' console access to KVM switches already installed at your site.

Note: Optional rack mount kits are available. For more information, refer to Compatible Accessories below.

Features

Hardware

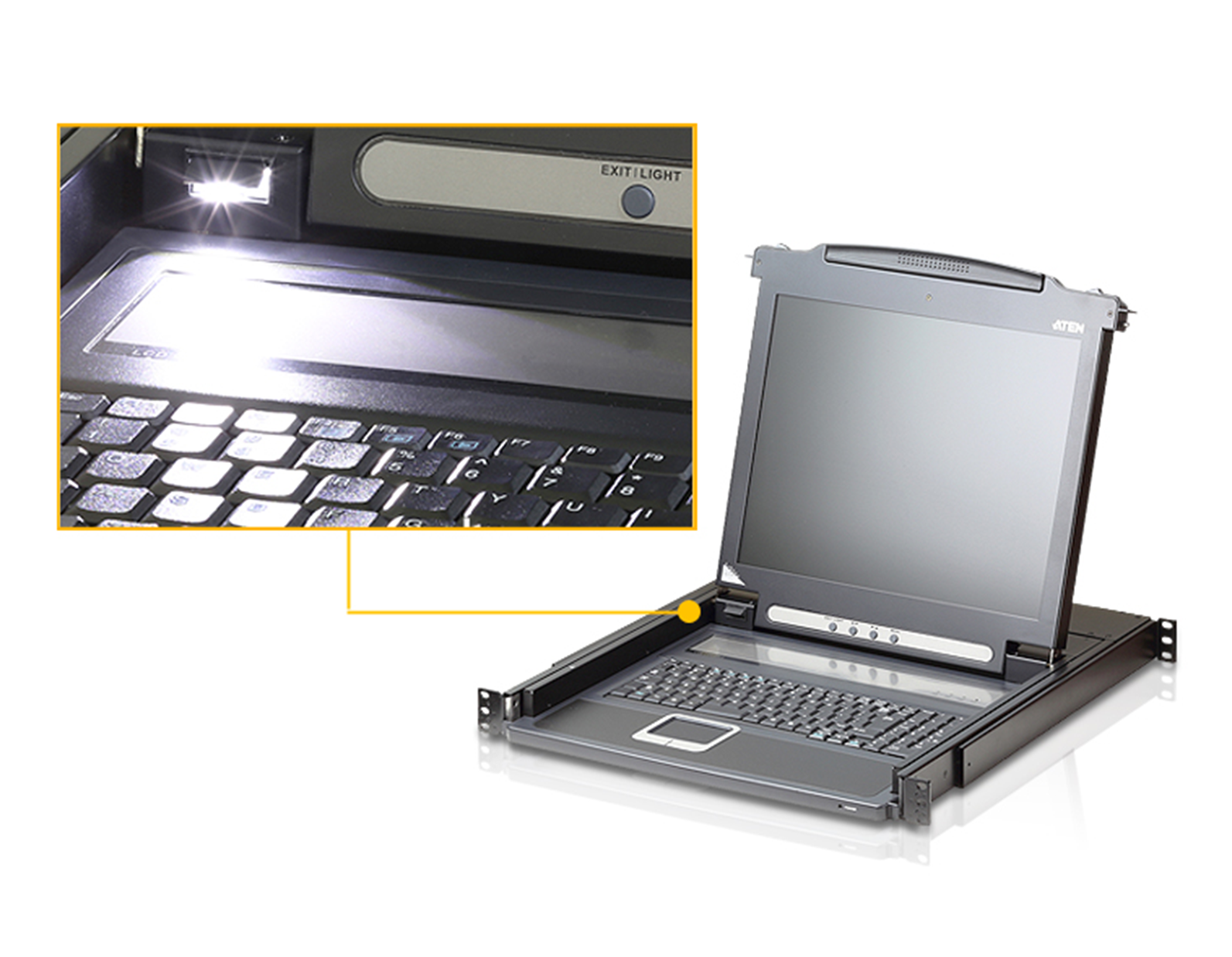

  ♦ Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to
     allow visibility in low-light conditions
  ♦ Integrated KVM console with 17" or 19” LED-backlit LCD monitor – in a sliding housing with top
     and bottom clearance for smooth operation in a 1U high system rack*
  ♦ LCD module rotates up to 120 degrees for a more comfortable viewing angle
  ♦ Slideaway™ housing is less than 1U – with top and bottom clearance for smooth operation in a
     1U high system rack
  ♦ Compatible with PS/2 or USB KVM switches when they are connected using custom KVM cables
     or converters
  ♦ Internal power supply
  ♦ Adjustable depth to fit within a rack
  ♦ High video resolution:
     • Supports input video resolutions up to 1920 x 1200 @ 60 Hz; and up to 1280 x 1024 @ 75 Hz
        with the built-in LCD screen
     • Supports DDC, DDC2, DDC2B
     • DDC emulation of the LCD monitor–Video settings of attached computers are automatically
        adjusted for optimal output to the LCD monitor
  ♦ Optional rack mount kits available including easy installation options

Note:

1. For more information, refer to Compatible Cables below.

2. Contact your ATEN dealer for product information.
