CL5716M

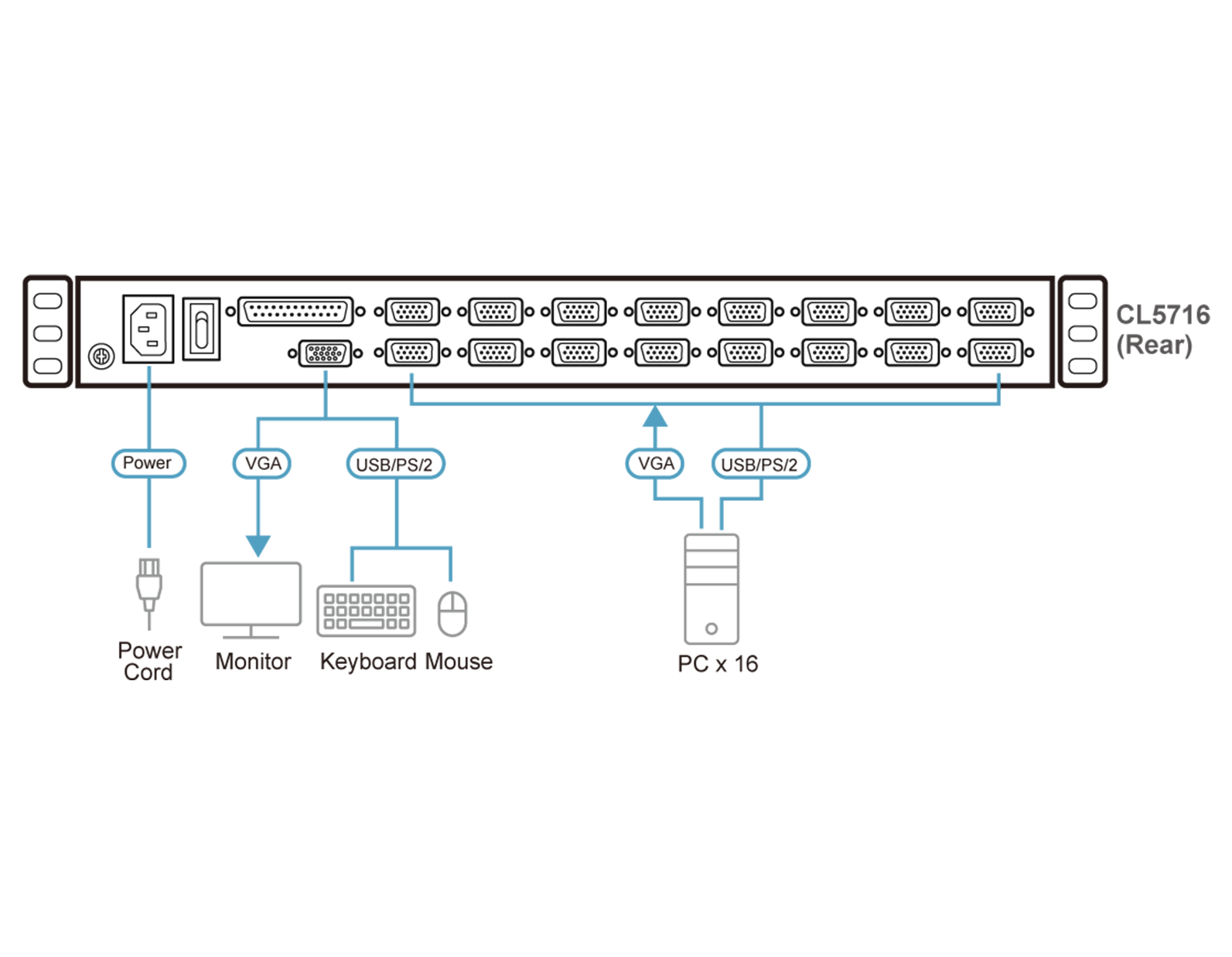

The CL5716 Slideaway – LCD KVM Switch series is a control unit that allows access to multiple computers from a single PS/2 or USB KVM (keyboard, video, and mouse) console. A single CL5716 can control up to 8 or 16 computers. As many as 31 additional KVM switches can be daisy-chained to the CL5716, so that up to 512 computers can all be controlled from a single KVM console.

The CL5716 offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 17", 17.3" or 19" LED-backlit LCD monitor, and touchpad in a 1U rack-mountable sliding housing. The 17.3" LCD monitor offers Full HD superior video quality for enhanced visibility and clarity.

The CL5716 is built on a modular design. The KVM section can be detached from the switch section for convenient maintenance and repair.

Note: Optional rack mount kits are available. For more information, refer to Compatible Accessories below.

Features

  ♦ Exclusive LED illumination light – designed by ATEN to illuminate the keyboard and touchpad
  ♦ Integrated KVM console with 17”, 17.3”or 19“ LED-backlit LCD monitor in a Slideaway™ housing
  ♦ Space saving technology – up to two consoles (one bus) control up to 8 or 16 computers
  ♦ Daisy-chain up to 31 additional units – controls up to 512 computers from a single console
  ♦ Dual interface – supports computers and console with PS/2 or USB keyboards and mice
  ♦ USB port allows each computer to access USB peripherals* (inapplicable to CL5716MW)
  ♦ LCD module rotates up to 120 degrees for a more comfortable viewing angle
  ♦ Multiplatform support – Windows, Linux, Mac, and Sun
  ♦ Supports multimedia USB keyboards for PC, Mac and Sun
  ♦ Auto PS/2 and USB interface detection
  ♦ Keyboard and mouse emulation (PS/2 and USB) for smooth switching and simultaneous booting
     of multiple computers even when the console focus is elsewhere
  ♦ Additional hot-pluggable USB mouse port on front panel (also functions as a USB peripheral port)
  ♦ Superior video quality – supports resolutions of up to 1280 x 1024 @ 75 Hz (CL5716M /
     CL5708N) and 1920 x 1080 @ 60 Hz (CL5708MW)
  ♦ No software required –convenient computer selection via front panel pushbuttons, hotkeys
     and multilingual onscreen display (OSD) menus
  ♦ Auto-senses station's position on daisy-chained installations; no need for manual dip switch
     setting; front panel LED indicates station's position
  ♦ Port names automatically reconfigured when station sequence is changed
  ♦ Two level password security – only authorized users can view and control computers
  ♦ Supports one administrator and four user accounts with separate profiles
  ♦ Auto Scan mode enables continuous monitoring of user-selected computers
  ♦ Broadcast supports – commands from the keyboard can be broadcast to all available computers
     on the installation
  ♦ Hot pluggable
  ♦ Beeper on / off via hotkey and OSD
  ♦ Firmware upgrades to all the chained KVM switches at the same time via the daisy-chain cable
  ♦ Optional rack mount kits available including easy installation options
  ♦ Keyboard Language supports: English (US), English (UK), French, German, German (Swiss),
     Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Traditional Chinese and Turkish
