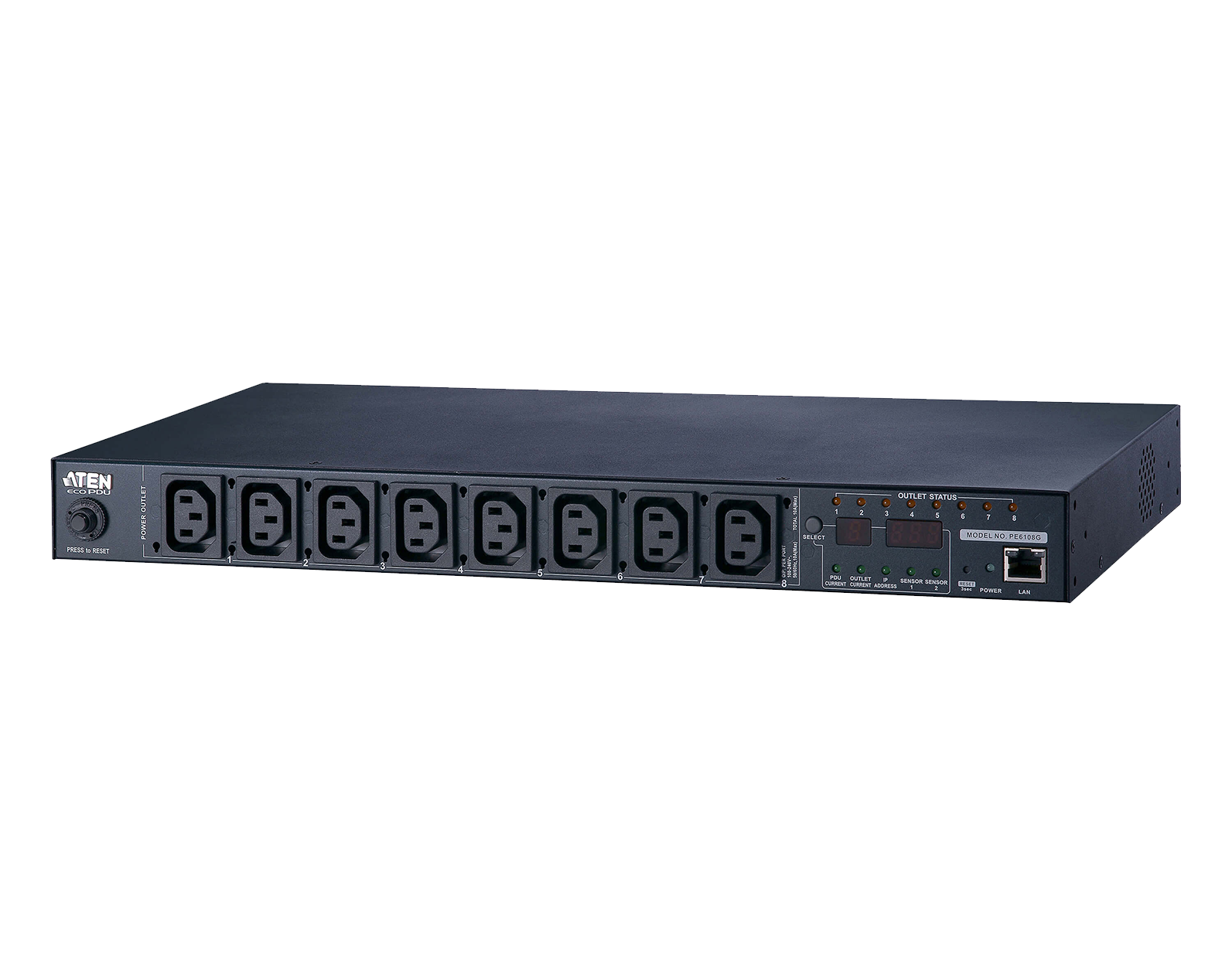

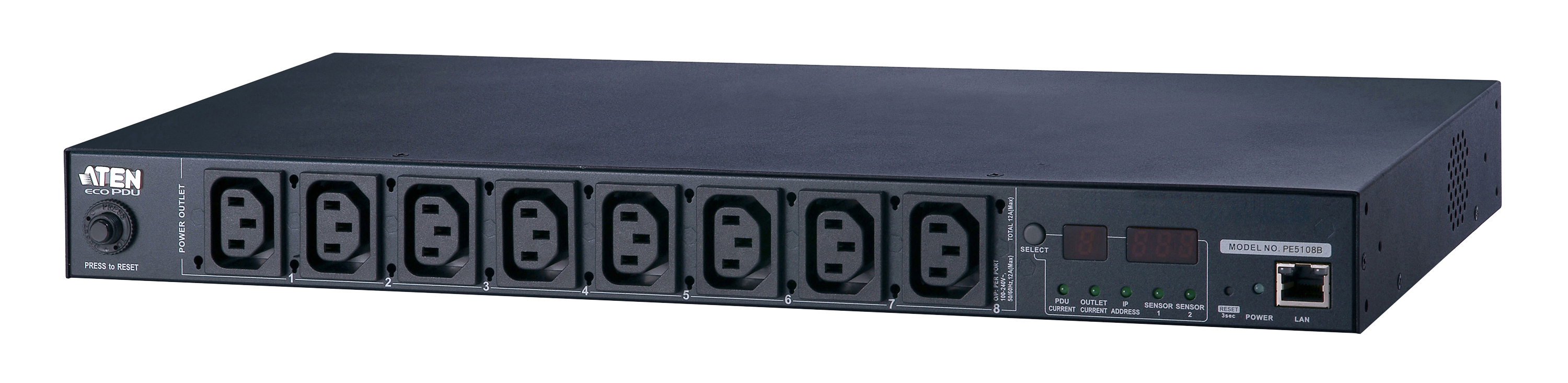

15A/10A 8-Outlet 1U Metered eco PDU
PE5108
ATEN PE5108 eco PDUs are intelligent power distribution units equipped with 8 AC outlets and available in various IEC and NEMA socket configurations. Designed for enterprise-level data centers, they offer secure, centralized, and intelligent power management — including power on, off, and reboot capabilities — for IT equipment such as servers, storage systems, KVM switches, network devices, and serial-based hardware.

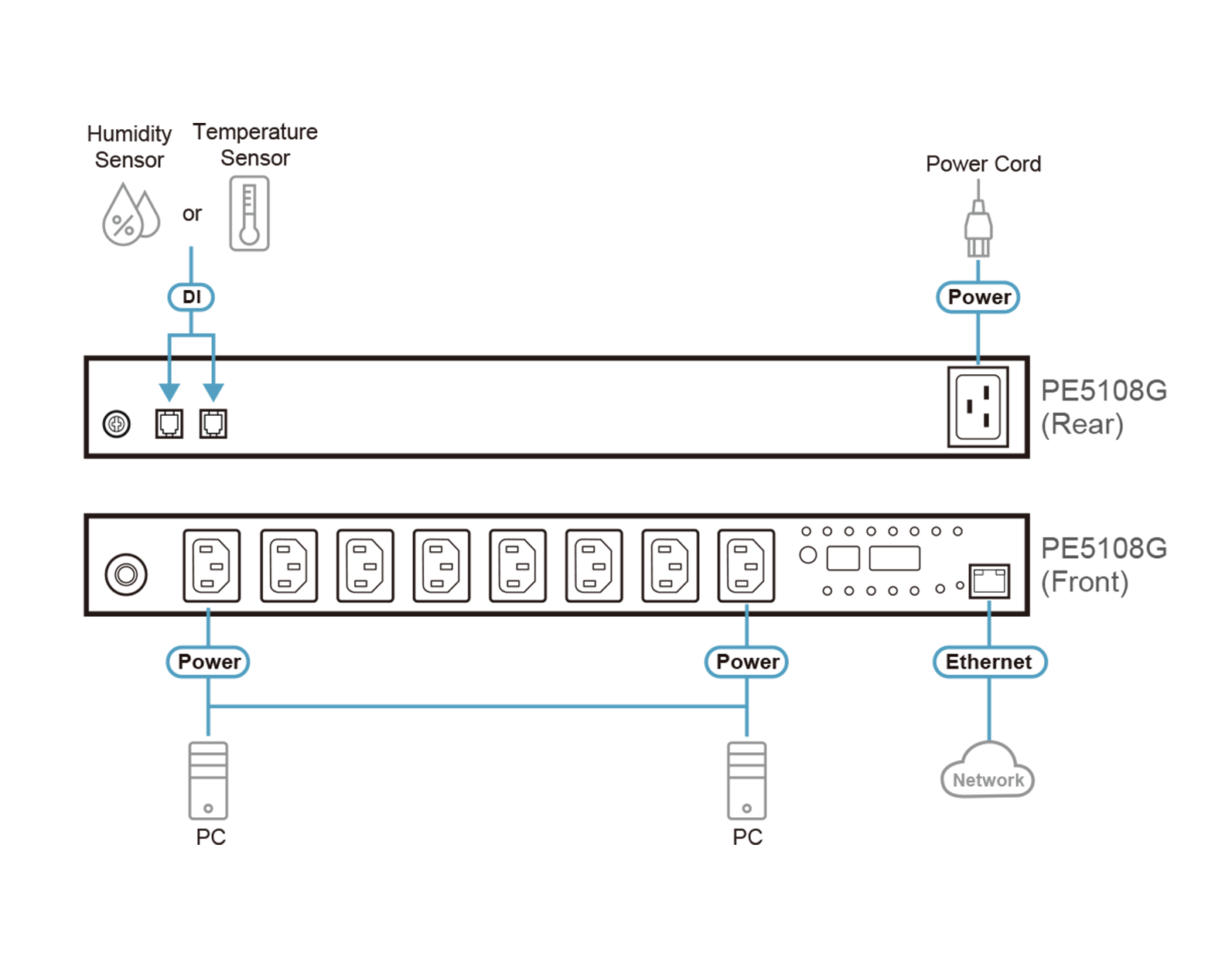

With the integration of optional environmental sensors*, they provide real-time monitoring of the data center’s ambient conditions, enabling improved energy efficiency and proactive infrastructure management.
Eco PDUs provide remote power control and real-time power monitoring, enabling users to manage and track power status from virtually anywhere via a TCP/IP connection.
The eco PDU supports third-party SNMP v3 management software as well as ATEN’s eco DC Energy Management Software. eco DC offers a user-friendly graphical interface for centralized management of multiple devices, allowing for easy configuration and real-time monitoring of connected equipment. When paired with sensor-enabled eco PDUs, eco DC also delivers detailed power analytics and reporting — organized by department or location — with accurate, real-time measurements of current, voltage, power, and energy consumption (watt-hour).
With advanced security features and user-friendly operation, the eco PDU offers the most convenient, reliable, and cost-effective solution for remotely managing power access across multiple computer installations, ensuring optimal allocation of power resources.
Note:
Sensors are optional accessories. A sensor-enabled installation is required to generate a more complete energy-efficient data and chart. Higher sensor installation density is helpful to generate more accurate data.
|
Features
Connections
♦ Support 10/100Mbit Ethernet Interface ♦ Support TCP/IP, UDP, HTTP, HTTPS, SSL, DHCP, SMTP, NTP, DNS, Auto Sense, Ping, Telnet, and SNMP V1,V2&V3 ♦ Support 2-level account/password security, IP/MAC filter, 128 bit SSL, RADIUS ♦ Support : eco DC, Browser (IE, Firefox, Chrome, Safari)
Metering
♦ Bank level power metering and monitoring ♦ Environment Monitoring : support external temperature/temperature & humidity sensors for rack temperature and humidity monitoring ♦ Current, voltage, power, power dissipation, temperature, and humidity metering and threshold level setting
Features available only on firmware-upgraded models with -ATB part number
♦ Supports SMTPS, IPv6, Modbus (Over TCP/IP), Auto Ping, TLS1.2, SSH ♦ Supports IEEE 802.1X ♦ Authentication: LDAP, TACACS+ ♦ UI – heartbeat,schedule control, mail control, and setting rule
|
|
|
|
DOWNLOAD : Aten Rack PDU Brochure
