PE8324

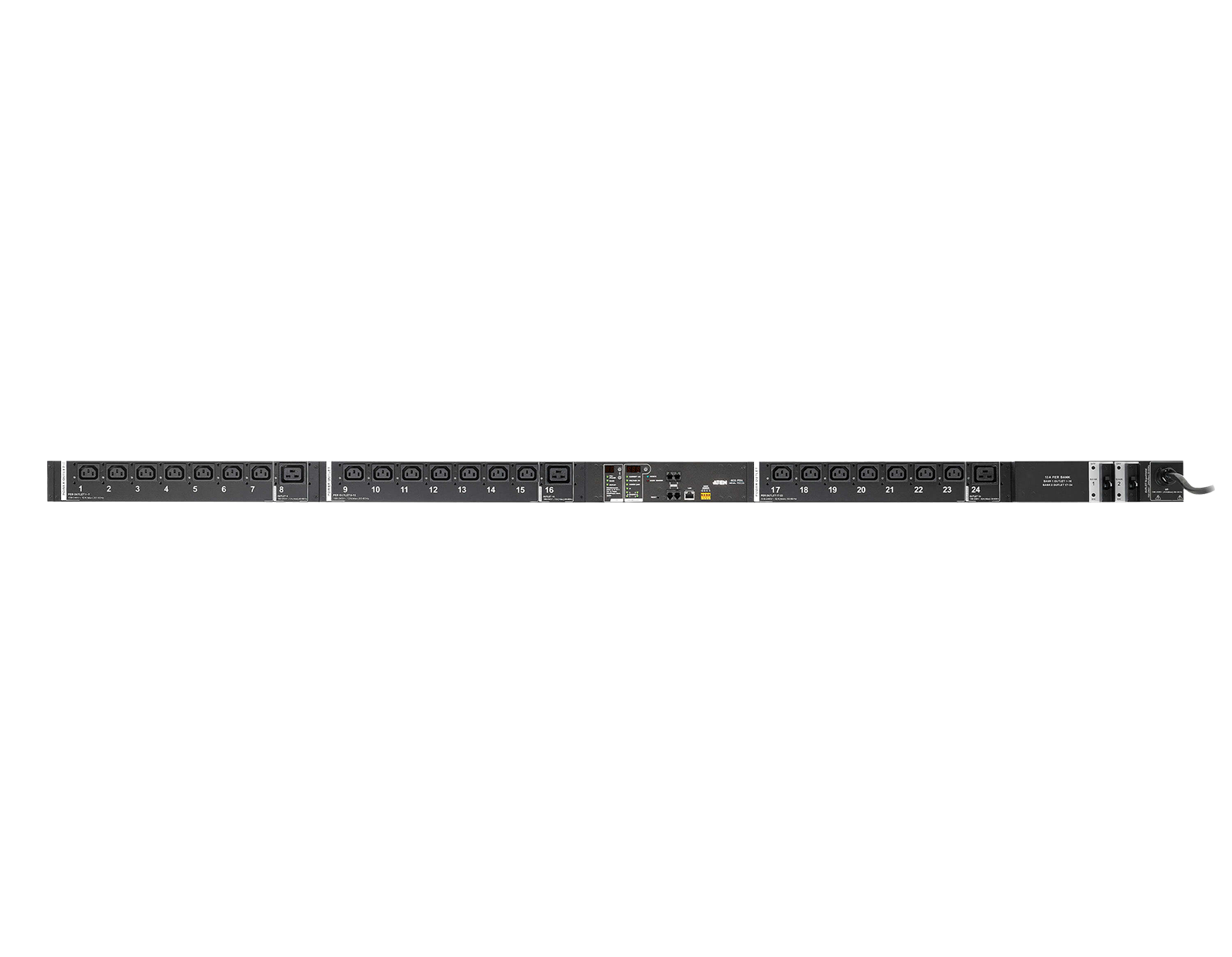

The PE8324 eco PDUs are intelligent PDUs that contain 24 AC outlets and are available in various IEC / NEMA socket configurations. These models feature proactive overload protection to automatically power off the last outlet that causes the current overload while allowing users to set shutdown priority.

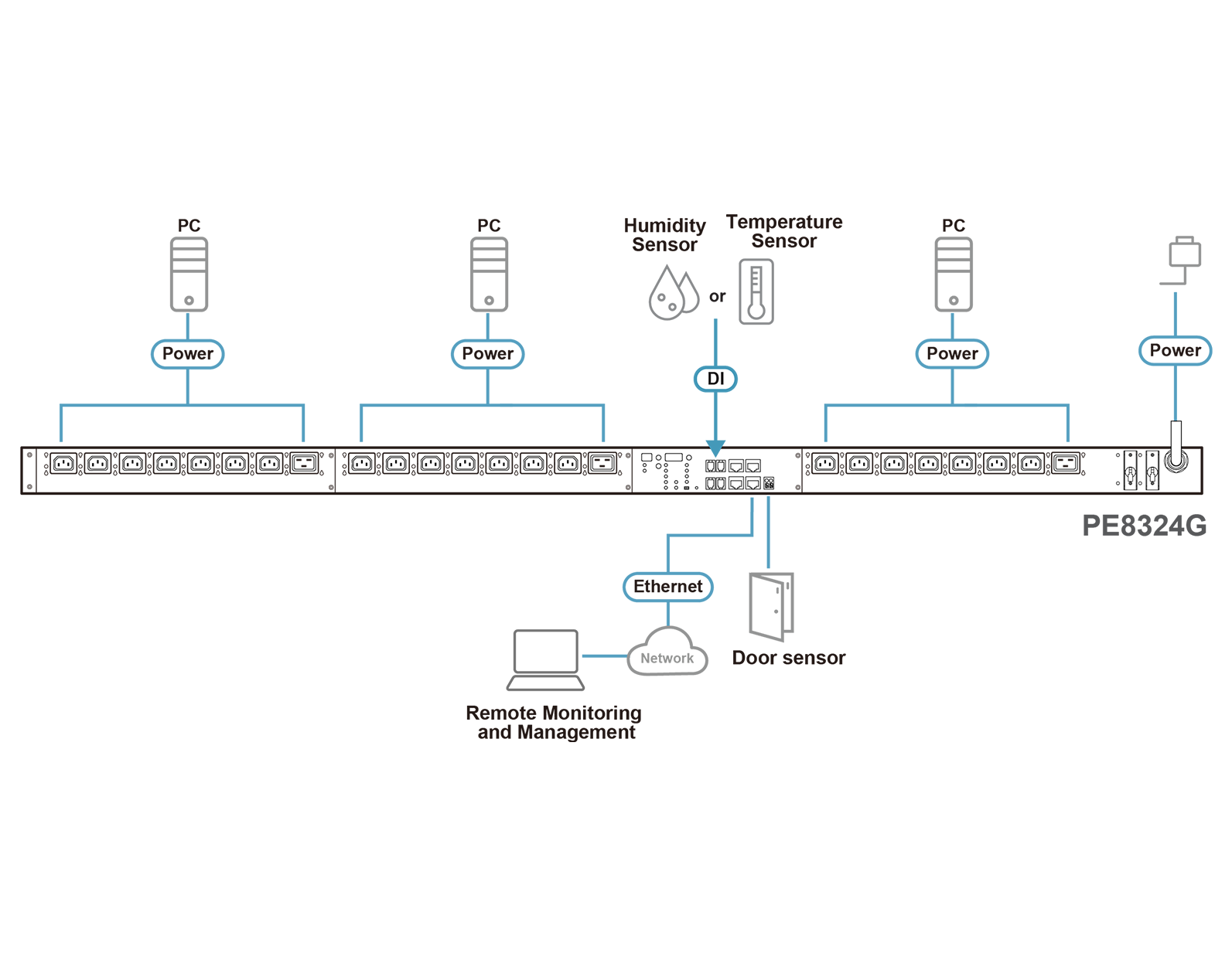

The eco PDUs provide secure, centralized and intelligent power management (power on, off, and cycle) of data center IT equipment (servers, storage systems, KVM switches, network devices, serial data devices, and more), as well as the ability to monitor the center's health environment via sensors.*These PDUs offer remote power control combined with real-time power measurement, allowing users to control and monitor the power status of devices attached to the PDUs, either at the PDU device, bank, or outlet level, depending on the model, from practically any location via a TCP / IP connection.

The power status of each outlet can be set individually, allowing users to switch each device on / off. The eco PDU also offers comprehensive power analysis reports which can separate departments and locations, providing precise measurements of current, voltage, power and watt-hour in a real-time display. Installation and operation are made fast and easy by simply plugging cables into their appropriate ports, and users get to enjoy the intuitive browser-based configuration and management. The eco PDU firmware is upgradeable over the Net, meaning users can download updates from ATEN's website to ensure that their eco PDU is equipped with the latest functionalities and improvements.

The series also supports the 3rd party V3 SNMP manager software and NRGence eco DC (Energy & DCIM Management Web GUI). The eco DC makes it easy when it comes to the management for multiple devices by allowing users to configure eco PDU setting and monitor the power status of the equipment connected to the PDU through a user friendly interface. Along with its set of features, the PE8324 series has become a convenient, reliable and cost-effective solution to help remotely manage power access for multiple computer installations and allocate power resources with efficiency.

Note:

   1. Sensors are optional accessories. A sensor-enabled installation is required to generate more
       complete energy-efficient data and charts. The higher the sensor installation density is,the
       more accurate the data generated will be.
   2. eco PDUs are primarily designed for access via Intranet; extra network security protection is
       suggested for Internet access usage.
   3. Designed for use with IT equipment in data center or controlled IT environments.
   4. Not recommended for use with inductive loads or motor-driven equipment.

Features

Connections

  ♦ Supports 10 / 100M bit Ethernet interface
  ♦ Supports TCP / IP, UDP, HTTP, HTTPS, SSL,SMTP, DHCP, ARP, NTP, DNS, Telnet, Auto Sense, Ping,
     SNMP V1,V2 and V3
  ♦ Supports three-level account / password security, IP / MAC filter, 128 bit SSL, and RADIUS
  ♦ Supports CC2000, eco DC, multiple browsers (IE, Firefox, Chrome, and Safari)

Metering

  ♦ PDU and outlet level power metering and monitoring
  ♦ Environment monitoring – supports external temperature / temperature and humidity sensors for
     rack temperature and humidity monitoring
  ♦ Current, voltage, power, power dissipation, temperature, and humidity metering and threshold
     level setting
  ♦ Supports door sensor

Outlet Switch Control

  ♦ Remote power outlet control (On/Off, Power Cycle) by individual outlets and outlet groups
  ♦ Outlet group support at the PDU level
  ♦ On / Off scheduling for individual outlet and outlet groups. Power management tasks can be
     scheduled on a daily, weekly, or user-specifi ed time basis
  ♦ Supports multiple power control methods – Wake on LAN, System After AC Back, Kill the Power
  ♦ Power-On sequencing – users can set the power-on sequence and delay time for each outlet to
     allow equipment to be powered on in the correct order
  ♦ Proactive overload protection (POP) – automatically powers off the last outlet that causes the
     current overload while allowing users to set shutdown priority

Features available only on firmware-upgraded models with -AT part number

  ♦ Supports SMTPS, IPv6, Modbus (Over TCP/IP), Auto Ping, TLS1.2, SSH
  ♦ Supports IEEE 802.1X
  ♦ Authentication: LDAP, TACACS+
  ♦ UI – heartbeat,schedule control, mail control, and setting rule
